Equipment
The X-ray Scattering Facility provides access to the following equipment:
The X-ray Scattering Core provides access to the following equipment:
Quick Links
Laboratory Powder Diffractometer (LPD-HT)
Description:

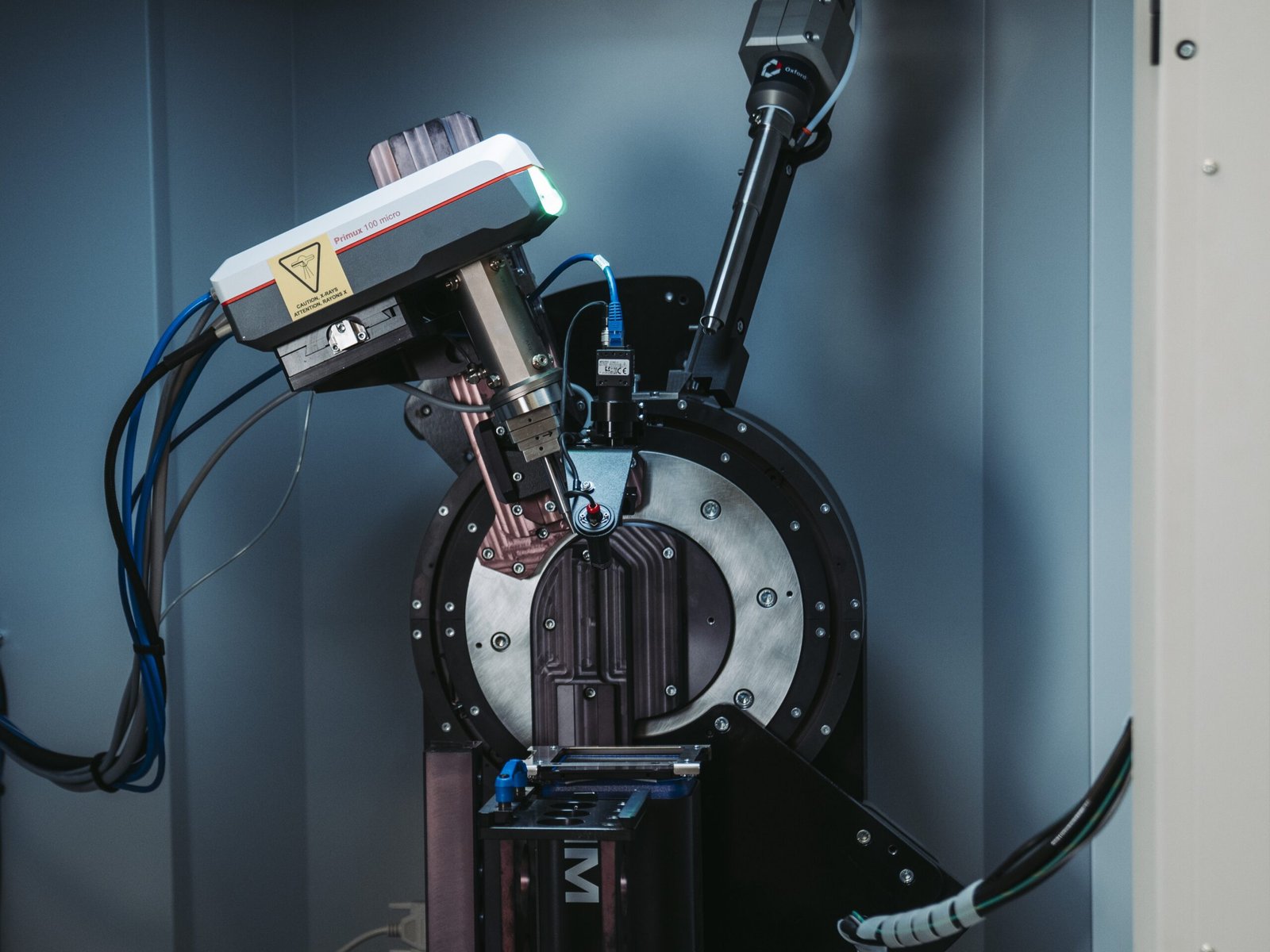

The Proto AXRD LPD-HT is a transmission powder X-ray diffractometer equipped with a copper microfocus X-ray tube, 2D Montel focusing optics, large Eiger2 R 1M area detector and a cryogen free open-flow cooler. Combination of X-ray microfocus and large area detector results in unprecedented scanning rate (47° 2Theta scan in just 3 minutes) at no compromise to intensity or angular resolution (min. FWHM = 0.075°, min. 2Theta < 1.0°). The instrument works in a well plate and capillary configurations. The well plate stage allows automated analysis of up to 96 samples using only 2-3 mg of crystalline powder. While well plate configuration is ideal for rapid data acquisition (150 samples in 8 hours), capillary configuration enables data acquisition of samples (including air sensitive) at different temperatures (80-400K) and gas pressure (up to 30 bar) for in-depth crystallographic analysis including structure determination.
Location:
Essex Centre of Research (CORe)
Room # 122C
Additional Information:
Techniques
- Phase ID
- Quantitative Phase Analysis (RIR, Rietveld)
- Indexing
- Ab initio Structure Solution
- Rietveld Refinement
- Percent Crystallinity
- Crystallite Size
- Strain
- Preferred Orientation
- In situ Experiments
- Phase Transition
- Thermal Expansion
- Polymorphism
- Air-sensitive samples
- Phase Diagrams (Variable Temperature – Variable Gas Pressure)
Software
- Proto XRDWin
- PDAnalysis
- Proto WPF
Configurations
- Vertical two-circle transmission geometry
- Well plate sample holder
- Capillary stage (with access to variable temperature and variable gas pressure up to 30 bar)
- Oxford Cryosystems Cobra open-flow cooler (80-400K)
Resources
Description

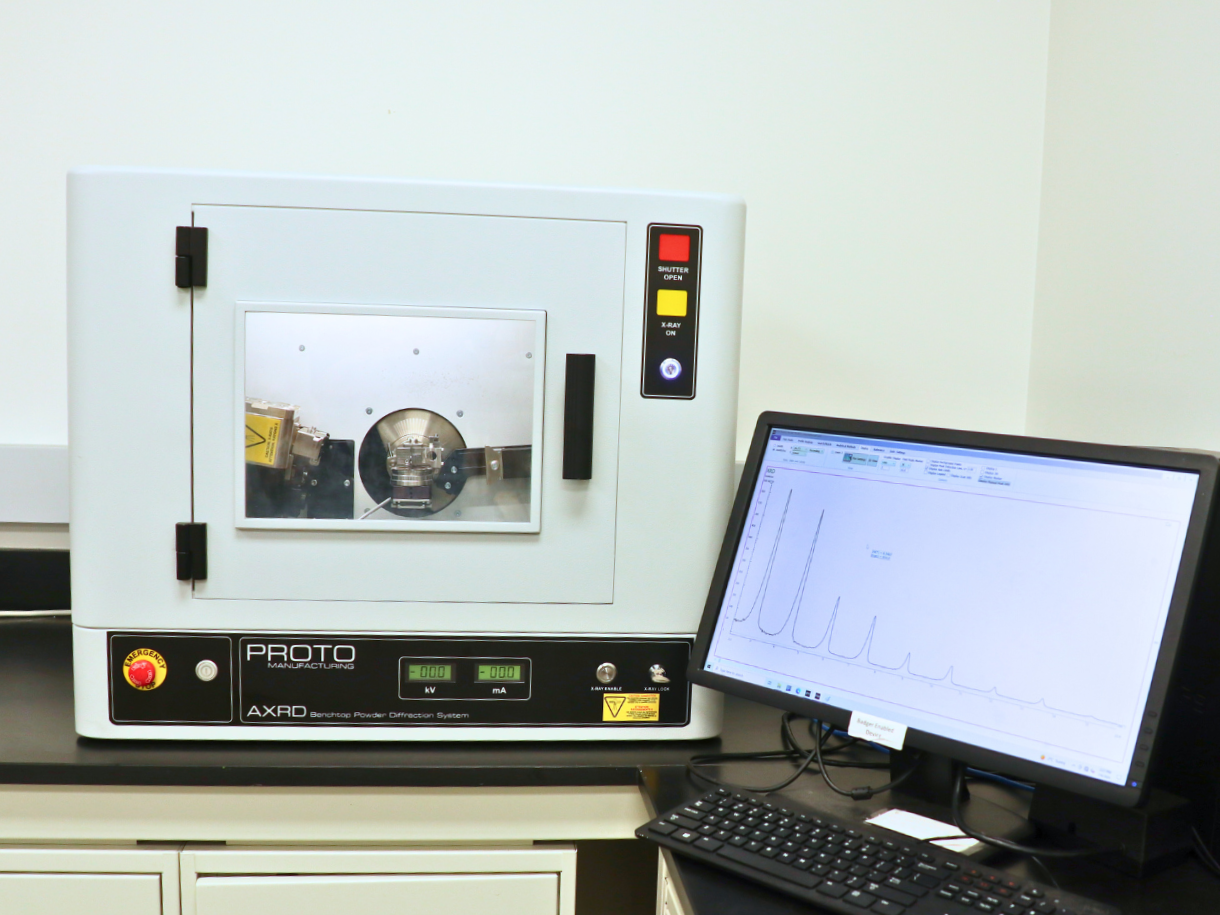

The Proto AXRD Benchtop is a powder diffractometer in Bragg-Brentano configuration. The instrument is equipped with a 600W sealed X-ray tube (Cu anode), silicon strip Mythen2 R 1D detector and an indexable sample spinner. Usage of the 1D detector results in shorter acquisition times compared to point 0D detectors. The incident beam size is easily adjusted with a set of divergence slits to achieve desired intensity/resolution compromise. Decoupled motors of the sample stage and the detector allow for collection of conventional theta-2Theta scans, glancing incidence scans (for thin films), and rocking curves. The sample spinner can be easily swapped with Anton Paar BTS 500 heating chamber (up to 500°C). The instrument requires about 30-50 mg of powder for data acquisition.
Location
Essex Centre of Research (CORe)
Room # 110
Additional Information:
Techniques
- Phase ID
- Quantitative Phase Analysis (RIR, Rietveld)
- Indexing
- Ab initio Structure Solution
- Rietveld Refinement
- Percent Crystallinity
- Crystallite Size
- Strain
- Preferred Orientation
- Rocking Curve
- Phase Transition
- Thermal Expansion
- Polymorphism
- Air-sensitive samples
Software
- Proto XRDWin
- PDAnalysis
- Proto WPF
Configurations
- Bragg-Brentano geometry
- Indexable sample spinner
- High-temperature chamber Anton Paar BTS 500
Resources
Single Crystal X-ray Diffractometer (SC-XRD)
Description

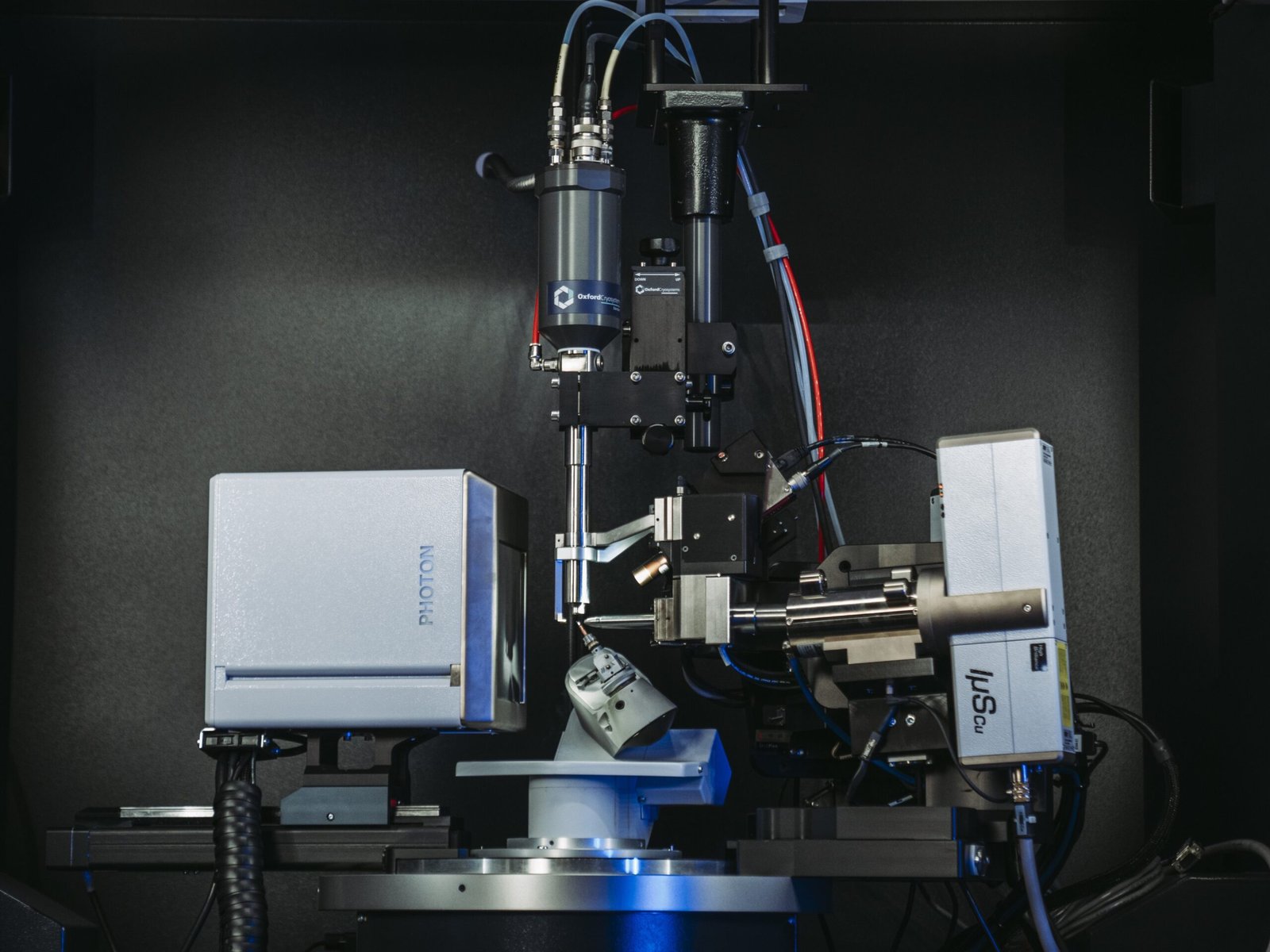

The Bruker D8 VENTURE SC-XRD is a state-of-the-art single crystal diffraction platform for structure determination of small molecules and proteins. The instrument is equipped with a four-circle kappa goniometer, two microfocus X-ray sources (Mo, Cu), PHOTON III detector and Oxford Cryosystems open-flow cooler (80-400K). The combination of bright dual x-ray source and a large detector results in unprecedented collection times (as short as 30 minutes for the collection of the triclinic crystal class), accurate determination of an absolute configuration and superb quality of the data.
Location
Essex Centre of Research (CORe)
Room # 110
Additional Information:
Techniques
- Structure Determination
- Determination of Absolute Configuration
Software
- Bruker APEX4
- Bruker CellCheckCSD
- Bruker CELL_NOW
Configurations
- Transmission kappa geometry
- Oxford Cryosystems open-flow cooler (80-400K)
Powder X-ray Diffractometer (PXRD)
Description

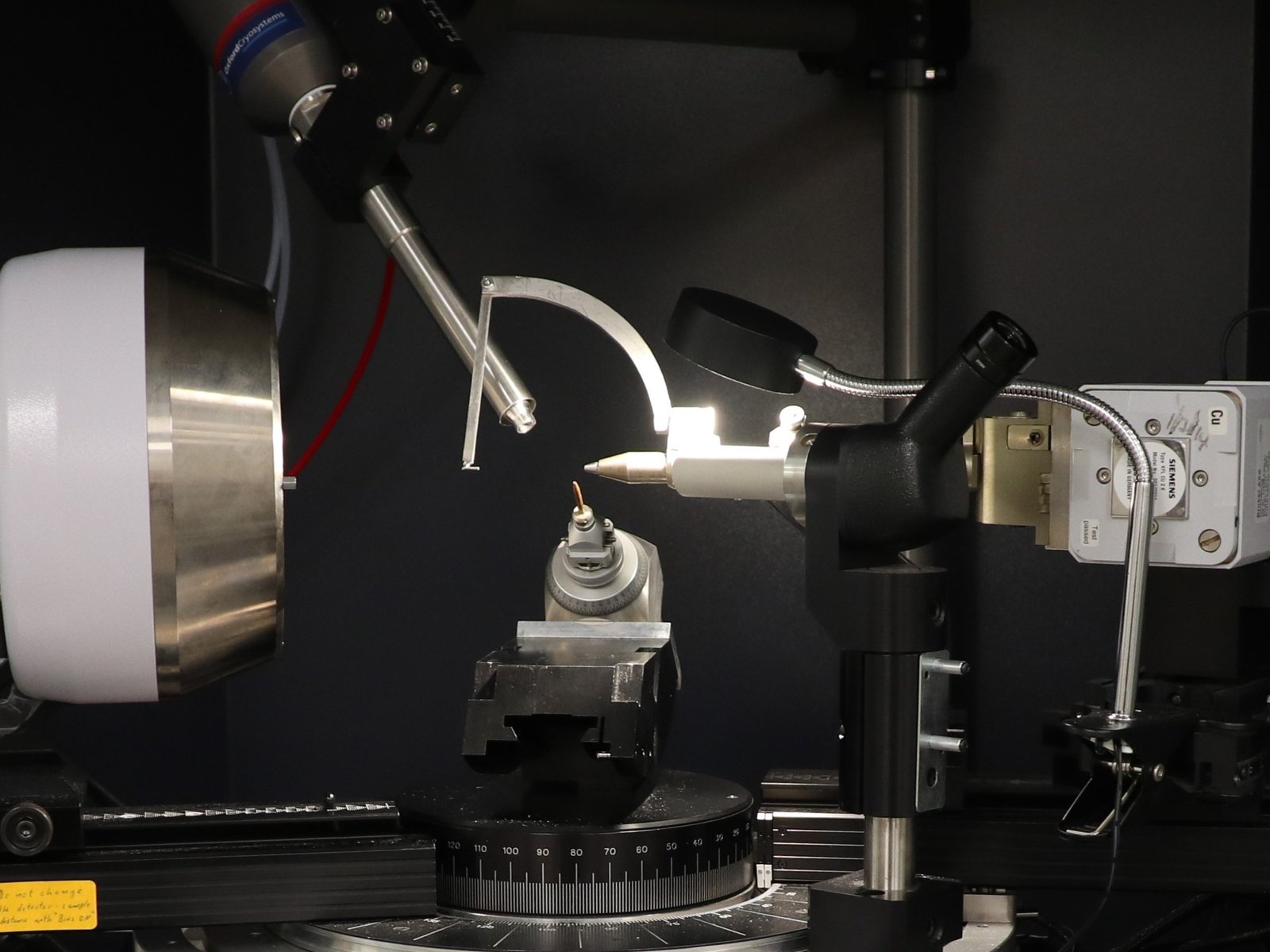

The Bruker D8 DISCOVER is a transmission powder X-ray diffractometer (4-circle fixed-chi goniometer) equipped with a sealed copper X-ray tube with a single crystal monochromator and glass capillary collimator; area Bruker Vantage 500 detector. The instrument is compatible with Oxford Cryosystems open-flow chiller (173-373K) and Instec heating stage (273-623K) providing access to experiments at low and high temperatures.
Location
Essex Centre of Research (CORe)
Room # 110
Additional Information:
Techniques
- Phase ID
- In situ Experiments
- Phase transition
- Thermal Expansion
- Phase transition
- Polymorphism
Software
- Bruker DIFFRAC.EVA Software
- Bruker GADD Software
Configurations
- Transmission fixed-chi geometry
- Oxford Cryosystems open-flow cooler (173-373K)
- Instec heating stage (273-623K)
